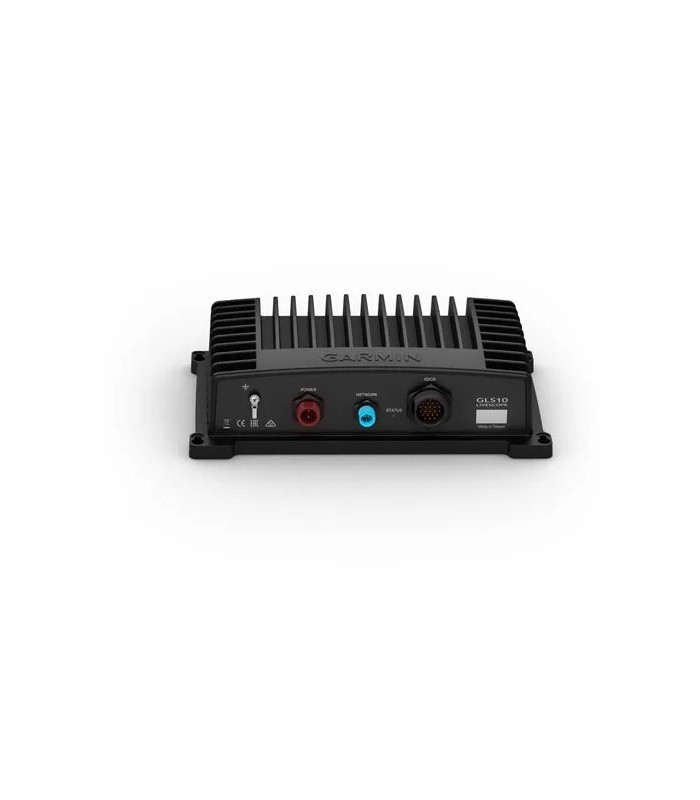

GLS 10 Sonar Module
search
  • GLS 10 Sonar Module

GLS 10 Sonar Module

789,00 €
Tootekood 010-12954-00
Kogus

Kuumakse al. 25.86€

Add Panoptix LiveScope™ Scanning Sonar to Your Compatible Chartplotter

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat.  And you can share sonar images seamlessly across multiple networked chartplotters.

Panoptix LiveScope Down

LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat — up to 200’ — even while your boat is stationary.

Panoptix LiveScope Forward

LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.

Marine Network

Üldine
Füüsilised mõõtmed 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm)
Kaal

4.3 lbs (2.0 kg)
Veekindluse tase IPX7
Temperatuurivahemik Operating: -15 C to 70 C

Elektriline
Toitesisend 10-32 V
Toitekasutus 21 W typical, 58 W max
Kaitse 7.5 A

Sonari funktsioonid ja spetsifikatsioonid
Toetatavad sagedused 530 - 1,100 kHz
Edastusvõimsus 500 W
Maksimaalne sügavus Down and Forward: 200’ (61.0 m)

Ühendused
Seadme Garmin Marine Network™ pordid

1 (small connector)
  • GLS 10 sonar module
  • Power cable
  • 2 meter Garmin marine network cable, small connector
  • Network adapter cable
  • Mounting hardware
  • Documentation
